- 120VAC, *208VAC, 240VAC models available
- TYPE 4X, IP69, & IP69K ideal for extremely wet and outdoor environments
- Industrial design for rough service applications
- Enclosure is Chemical and U.V. resistant
- Double insulated user interface as required by all portable equipment
- Largest 20 Amp switching contacts in the industry (high reliability)
- Optional cable types and lengths available
- Available in Automatic or Manual (safe start) reset models
- Open neutral protection
- Dual indication lights displaying power and fault status
- Meets UL self-test requirements
- cULus listed to UL 943 (Class A GFCI)

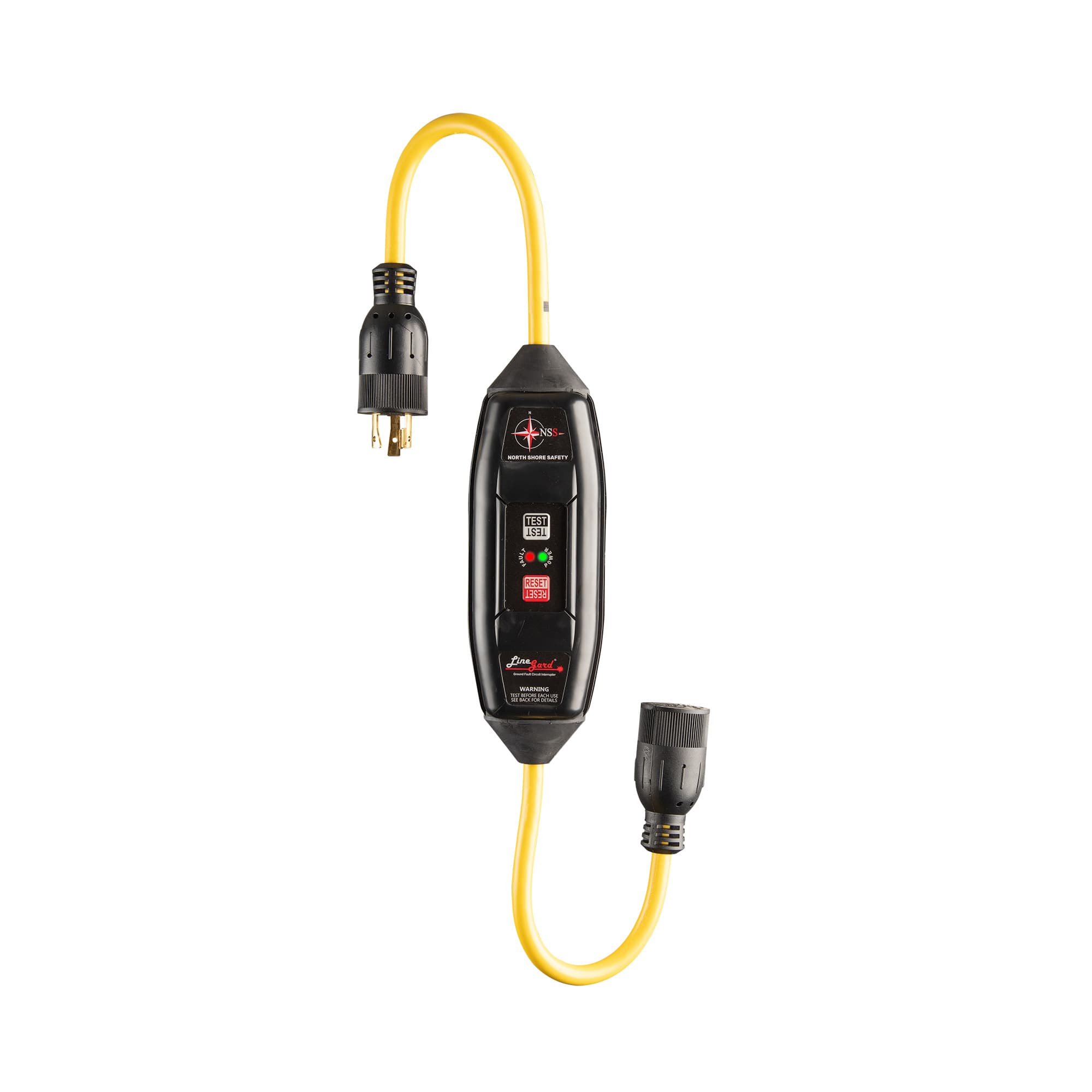

20 Amp Portable GFCI
- 120VAC, *208VAC, 240VAC models available
- TYPE 4X, IP69, & IP69K ideal for extremely wet and outdoor environments
- Industrial design for rough service applications
- Enclosure is Chemical and U.V. resistant
- Double insulated user interface as required by all portable equipment
- Largest 20 Amp switching contacts in the industry (high reliability)

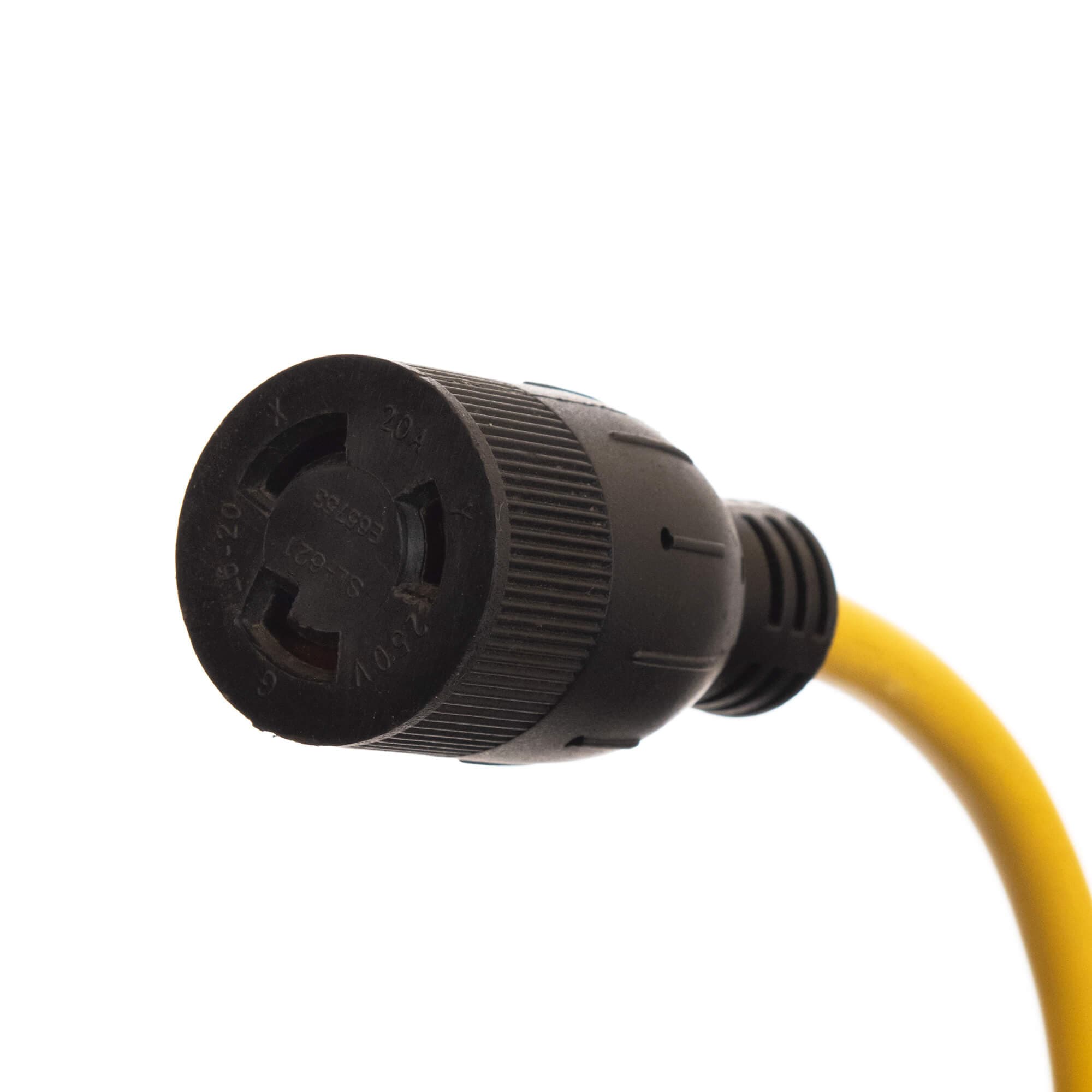

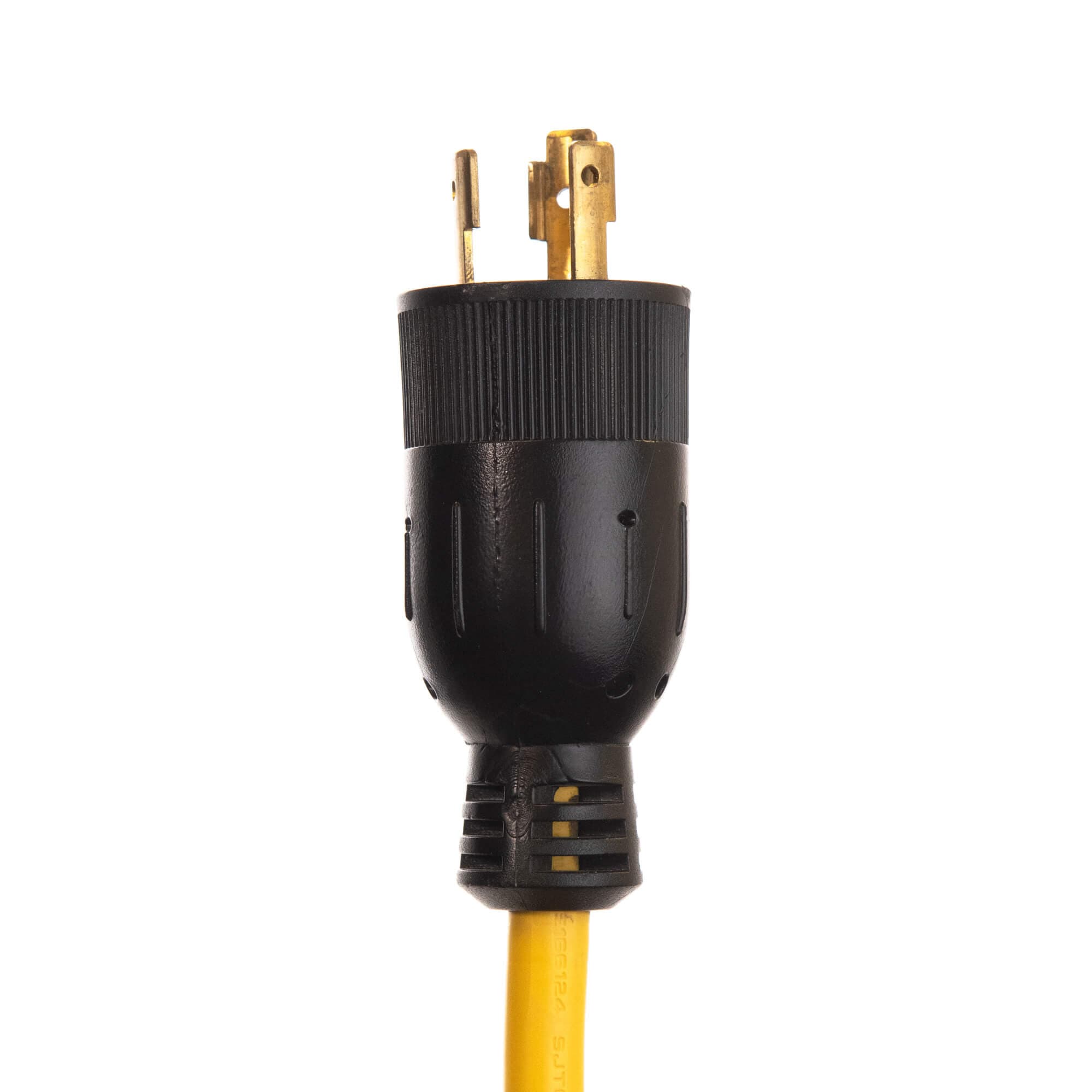

- The LineGard™ 20 Amp Portable Series comes factory standard with plug and connector or with flying leads for OEM and field wiring applications. It is available in either Automatic or Manual reset types on power up *(see below). Power cords intergrated with this LineGard™ 20A GFCI become OSHA compliant for portable and temporary power usage in confined space: OSHA 29 CFR 1926.404(b)(1)(ii) and 29 CFR 1926.405(b)(1)(ii)(G).
- This product meets the requirements of NEC 590.6 (a) & (b), and OEM applicance requirements per NEC 422.5 & NEC 210.8.
- The LineGard™ 20 Amp Portable series GFCI is engineered for extremely wet and hazardous environments. LineGard™ 20 is designed and constructed with materials that are impact resistant and withstand chemical and UV light exposure. It is also achieves TYPE 4X, IP69K ratings and is suitable for both indoor and outdoor applications.

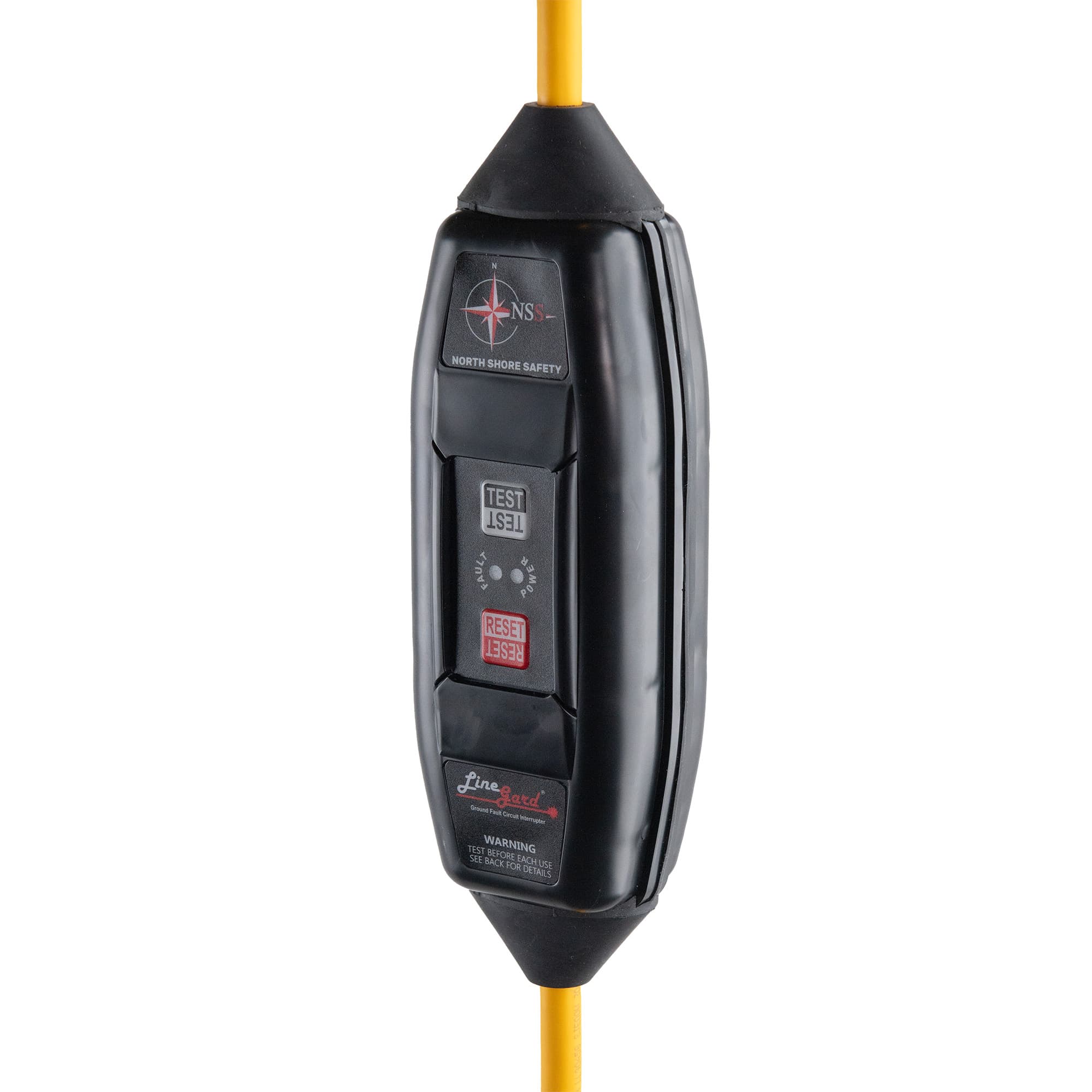

- For user convenience, the LineGard™ 20 Amp portable series GFCI incorporates green and red LEDs for power and fault status. LineGard™ 20 features Test/Reset buttonsthat are double insulated and recessed for additional safety to prevent accidental switching during rough handling. In addition, the electrical contracts of this device are electro-magnetically latched to prevent false tripping under rough service.
- North Shore Safety offers custom assemblies in addition to our standard models. All custom assemblies can be integrated with various wiring devices, cord lengths, or wire terminations for convenience of use and installation.
- All LineGard™ 20 Amp Portable series GFCIs are proudly assembled in the U.S.A in ISO certified facilities and are UL and cUL listed to UL 943. (cURus recognized with flying leads)
- Type: Class A
- Voltage: 120 VAC, 240 VAC, 208 VAC (consult factory)
- Operating Voltage Range: 85% to 110% of rated voltage
- Current: Up to 20 Amps or various wiring devices and/or cable rating
- Frequency: 60 Hz, 50 Hz (available non-UL)
- Trip Level: 5 +/- 1 mA
- Phase: Single
- Response Time: 25 mS max @ 500 Ohm fault
- Operating Temperature: -35°C to 66°C
- Let Go Voltage: 60% rated voltage
- Reset Type: Automatic or Manual (safe start)*
- Open Neutral Protection: Opens upon loss of neutral (on applicable SKUs only)
- Grounded Neutral Protection: Trips if ground and neutral touch at load side (on applicable models only)
- Enclosure: TYPE 4X, IP69, & IP69K wet location rated; high impact withstand
- Switch Interface: Double insulated
- Latching Mechanism: Electro-magnetic
- Agency Approval: cULus 943 Listed
