- Various voltages available (see configuration table)
- TYPE 4X wet location rated indoor/outdoor
- Industrial design for rough service applications
- Enclosure is Chemical and U.V. resistant
- Double insulated user interface for added safety
- Available in Automatic or Manual (safe start) reset models
- Open neutral protection (only on applicable models)
- Dual indication lights displaying power and fault status
- Flying leads for field splicing
- Solid wires (input) striped wires (output)
- Surface mountable (4 location) Panel mountable (2 blind cover holes)
- 1Ø and 3Ø cCSAus certified to CSA-C22.2 No. 144 (277 VAC not listed)
30 Amp Permanent ELCI/GFPE
- Various voltages available (see configuration table)
- TYPE 4X wet location rated indoor/outdoor
- Industrial design for rough service applications
- Enclosure is Chemical and U.V. resistant
- Double insulated user interface for added safety
- Available in Automatic or Manual (safe start) reset models

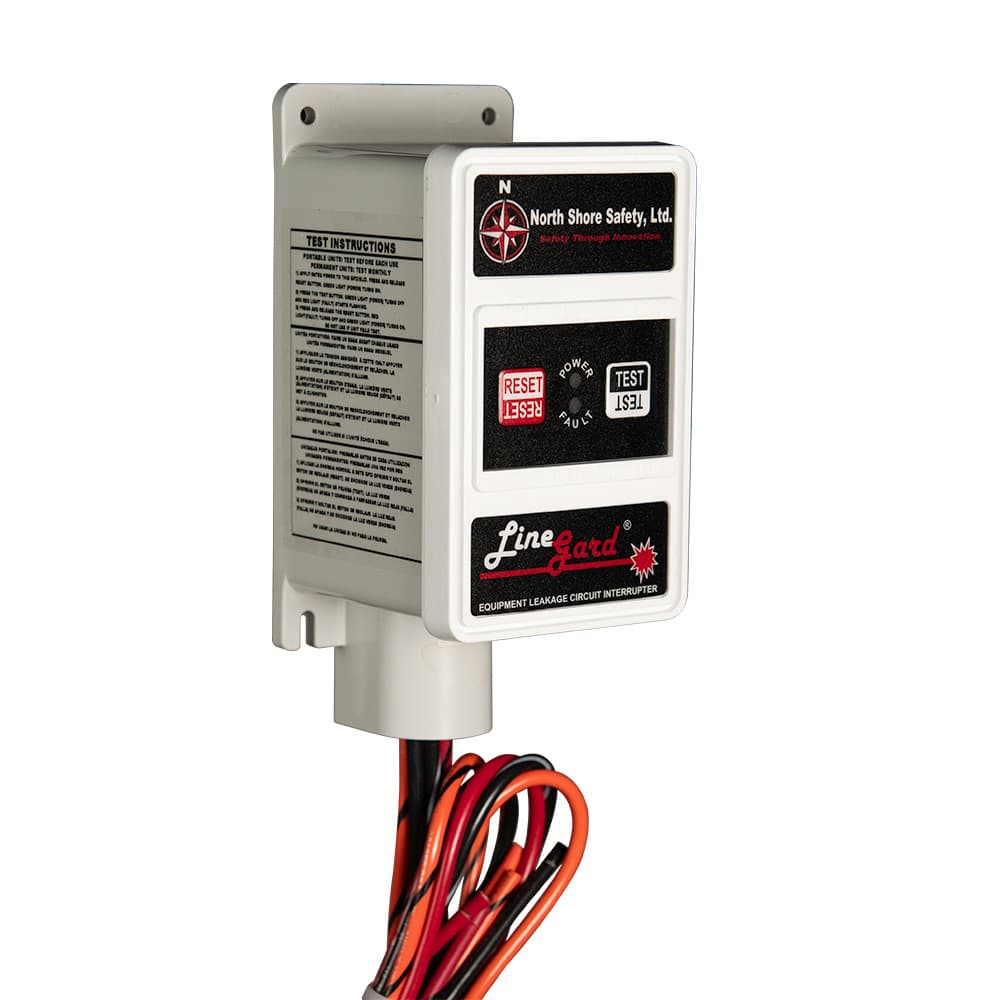

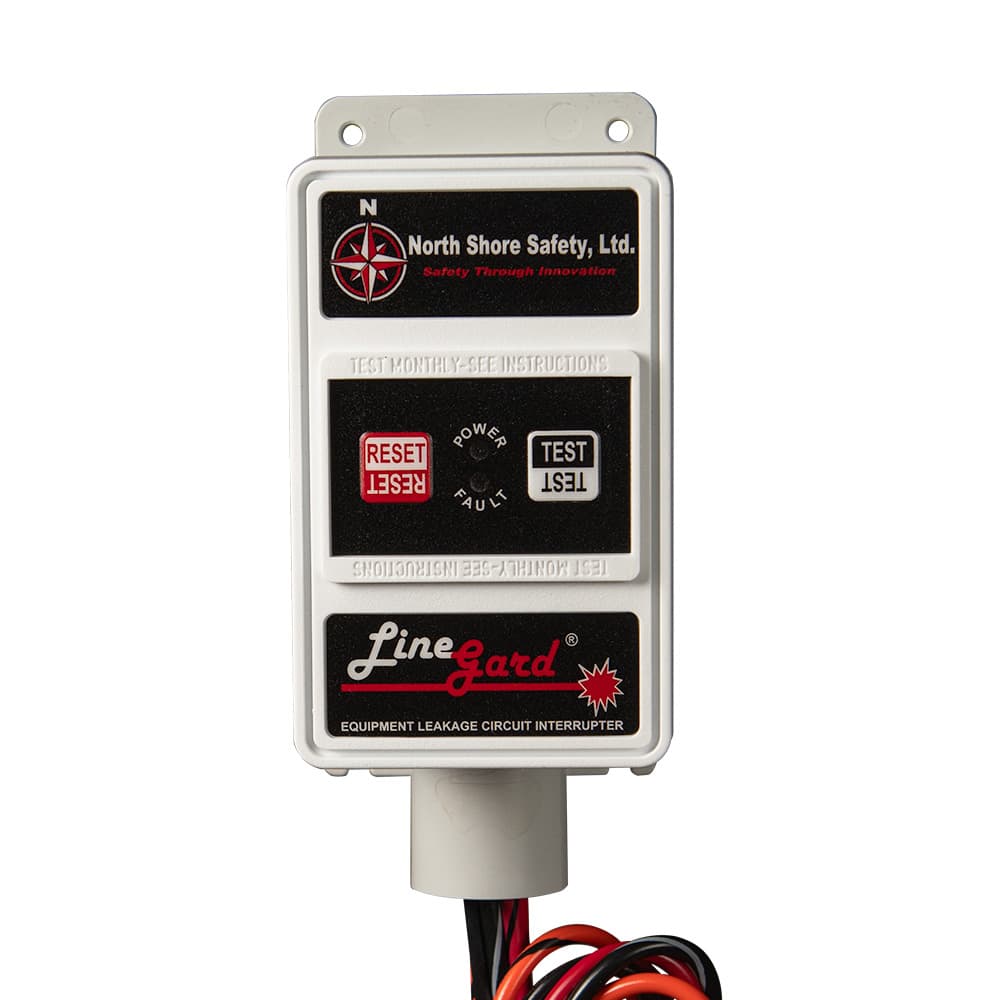

- The LineGard™ 30 Amp Permanent Series single and multiphase ELCI is ideal for both new and existing circuit installations. This ELCI has a unique design that offers the flexibility of splicing-in the protection of a ELCI anywhere within the length of a circuit run. This convenience allows the installer to place this ELCI at an accessible location for the end user.
- Unlike breaker style ELCIs which have limitations of circuit length from the service panel: the Permanent Series ELCI is installed at the point of use and thus has no restrictions to circuit length by definition.
- The LineGard™ 30 Amp Permanent Series ELCI can be integrated directly into a circuit or paired in tandem with an approved receptacle and enclosure.
- All units have 18” splicing lead wires, a ¾” NPT fitting that can connect to ¾” PVC, EMT,
- Burial and Flexible conduits. In addition, the unit can be installed as a panel mount. Multiple fault output options are available.
- All units are available in an Automatic or Manual (safe start) reset type.
- Note: ground wire is connected externally to ELCI device and does not enter the ELCI housing. Units CSA C22.2 No. 144 listed. (277 VAC are non CSA).
- North Shore Safety offers custom assemblies in addition to our standard models. All custom assemblies can be integrated with various wiring devices, cord lengths, or wire terminations for convenience of use and installation.
- All LineGard™ 30 Amp Permanent Series ELCIs are proudly assembled in the U.S.A in ISO certified facilities and are cCSAus. (exception 277V).
- Type: ELCI
- Voltage: 120VAC, 208VAC, 240VAC, 120/240VAC, 120/208VAC 3Ø, 208VAC 3Ø, 240VAC 3Ø, (277VAC)
- Operating Voltage Range: 85% TO 110% of rated voltage
- Current: Up to 30 Amps or receptacle device rating
- Frequency: 60 Hz, (50 Hz available)
- Trip Level: 10 mA, 20 mA, 30 mA
- Phase: Single, Split, and 3Ø (WYE and Delta)
- Response Time: 25 mS max @ 500 Ohm Fault
- Operating Temperature: -35°C to 66°C
- Reset Type: Automatic or Manual (safe start)*
- Open Neutral Protection: Opens upon loss of neutral (only on applicable models)
- Enclosure: NEMA 4X wet location rated
- Switch Interface: Double insulated
- Latching Mechanism: Electro-magnetic
- Agency Approval: cCSAus
